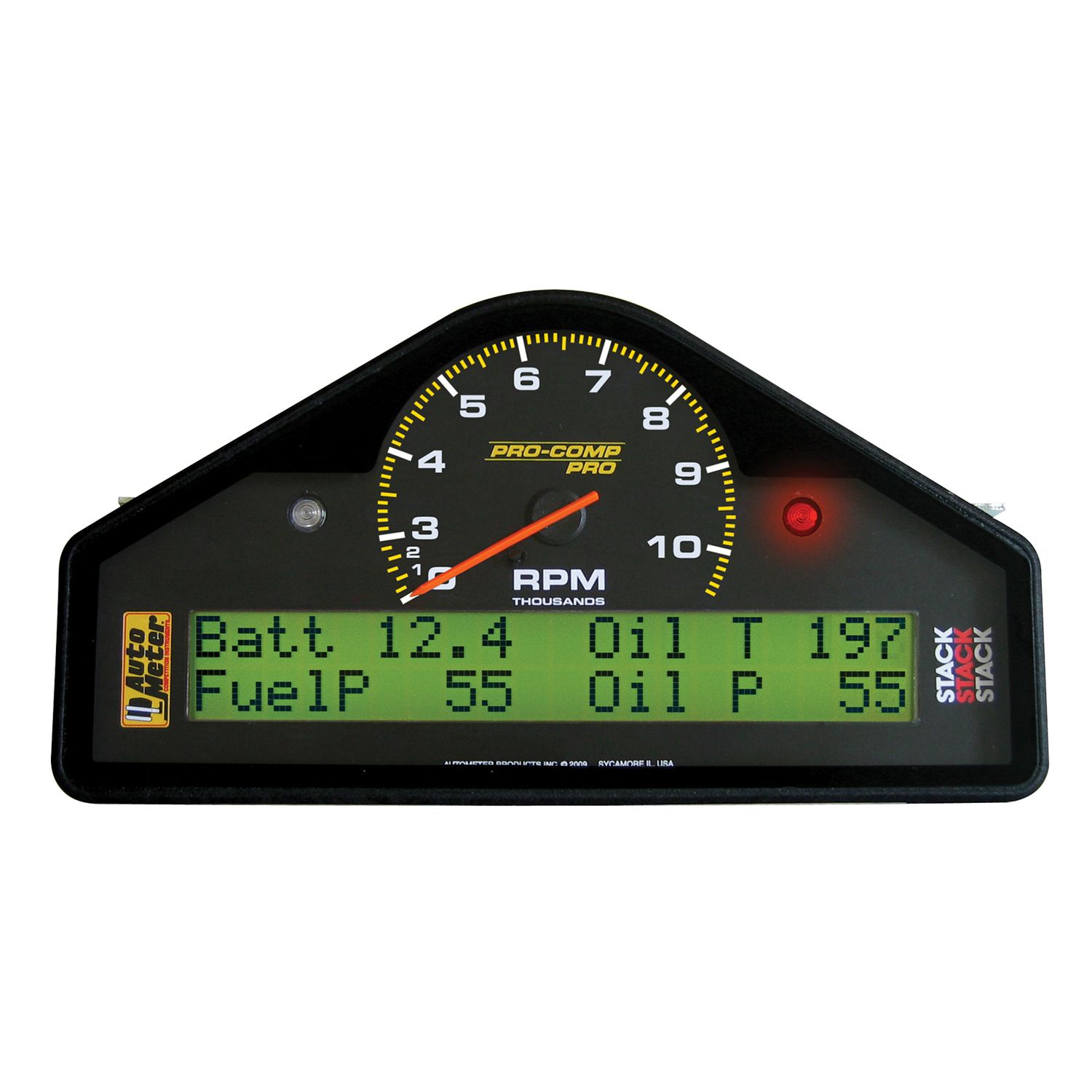

RACE DASH, 0-3-10.5K RPM, PRO-COMP PRO

$1,939.50

Shipping in 2-4 business days

Free Shipping over $99

Hassle Free Returns

Quick Specs

Size:7.5"W x 4"H x 1-1/2"D
Type:Analog/Digital
Range:0-3-10.5K RPM/200+ MPH/0-150 PSI/0-150 PSI/0-300 °F/0-300°F/8-18V
Lighting:LED
Instructions: Download PDF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DESCRIPTION:

AutoMeter's preconfigured race dash displays can be installed on any application from the sportsman racer to the top tier motorsports team. In addition to all of the display perameters, the race dash display records your run and plays it back right on the dash.

AutoMeter recommends contacting our tech agents at (866)248-6357 prior to purchase for any questions or concerns regarding this product, installation, use, or accessories related to this product.

The AutoMeter Race display systems are designed specifically for the harshest environments. The carbon composite housing is IP67 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. The analog pointer provides a quick and clear display for engine RPM while the digital display layout is configurable using preconfigured sensor inputs using multiple pages for your axillary instrumentation needs. User definable warnings display across the digital display and illuminate the warning LED placed to the side of the tachometer to alert the driver to critical information. Record and play back your run right on the face of the dash display.

Display Features:

Dimensions - 8.3" Wide x 5.2-1/16" High x 1.4" Deep
Carbon Composite Housing
Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
Includes oil pressure, water temperature, oil temperature , and fuel pressure sensors
Display features digital values for vehicle parameters and configurable text warning messages
Built-in warning and shift light LEDs
Optional shift light output, single stage or progressive shift light

Inputs:

Configurable Tachometer for 1 to 12 cylinders
Vehicle speed
Oil pressure
Water temperature
Oil temperature
Fuel pressure
Internal battery voltage

Environmental:

IP67 sealed
Operating temperature range: 20ºF to 180ºF
Humidity: 0-100% RH
Continuous vibration up to 20g, Shock up to 50g

Miscellaneous:

Weight: 1.5lbs
Motorsports grade wiring harness included

Upgrade:

Data download upgrade with ST8185 - Allows the Race dash to download to DataPro software. Includes network harness, network to USB cable, and DataPro software

Feature Points

Monitors and displays: RPM, Speed, Oil Pressure, Oil Temperature, Water Temperature, Voltage, & Fuel Pressure.
Dimensions - 8.3" Wide x 5.2-1/16" High x 1.4" Deep
Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
Includes oil pressure, water temperature, oil temperature , and fuel pressure sensors
Display features digital values for vehicle parameters and configurable text warning messages
Built-in warning and shift light LEDs
Optional shift light output, single stage or progressive shift light
Configurable for engines from 1-12 cylinders
Programmable Speed input
IP67 sealed

Ships With

Includes Sending Unit: 2x ST764 Temperature Sensor, 2x ST747-1/8NPTF Pressure Sensor, ST492 Pulse Amplifier
Call AutoMeter Technical Support At 1-866-248-6357
Wire Harness: ST872-006 Wire Harness
Hardware Included

REVIEWS:

QUESTIONS:

Is the background color configurable or is it always green? Is the size of the numbers and letters configurable?

Asked by: Crager5

The size of the numbers and letters are not configurable and unfortunately neither is the dash for the green color.

Answered by: Steve from AutoMeter

Date published: 2022-10-25

Hello I'm just inquiring to see if you'd ship to Brisbane Australia thank you regards

Asked by: trace

Please contact Rocket Industries in Sydney for Auto Meter Products distribution in Australia.

Answered by: Jim from AutoMeter

Date published: 2022-08-10

How to change fuel pressure from BAR TO PSI ON A 6014 dash. Is there a wheel speed function on the 6014.

Asked by: Allen ward

There is no way to change the metric values and it does not have a speed sensor. The wheel speed sensor is available on the 6013.

Answered by: Alex at AutoMeter

Date published: 2022-05-02

What is the ACTUAL overall size? Quick spec says 7.5"x4", description says 8.3"x5.2"???? I would like to use it in a F5000 customer car and do not have a lot of empty space in the dash. The installation instructions are of little help.

Asked by: jwkopec

https://www.autometer.com/pub/media/manual/2650-1474.pdf Go on page 28 and it will show a more detailed version of the dimensions.

Answered by: Thomas From AutoMeter

Date published: 2022-04-01

where address do i send auto meter race dash to have memory battery replaced

Asked by: Mike409

While this form isn't required, this will include instructions on sending the dash in for service https://www.autometer.com/media/Service_Form.pdf

Answered by: Matt from AutoMeter

Date published: 2022-02-14

Hello, run a supercharged Top Dragster using MSD pro mag 20, currently use a standard Autometer tach set up, do I need anything special on the interface to hook this unit up? thanks, Dave Jamison

Asked by: Dave3540

You would not. The race dash comes with everything that you need as long as you have a standard tach signal. I would recommend reaching out to MSD to confirm that, but in any case, our 9118 will work.

Answered by: Sarah from AutoMeter

Date published: 2021-11-16

What is the small thread size for the water temp sensor?

Asked by: Joe469

Thank you for your question. The thread size for our water temp sensor is 1/8" NPT.

Answered by: Steve from AutoMeter

Date published: 2019-07-18

Could any of these be used for Marine application like outboard motors

Asked by: Juffy

Hi Juffy, thank you for the question. Yes, our Race Dashes would be suitable for most marine applications. For additional questions and details for your specific application, we'd recommend reaching our to our Technical Sales Team at 866-248-6357. You can also email us here: https://www.autometer.com/contacts
