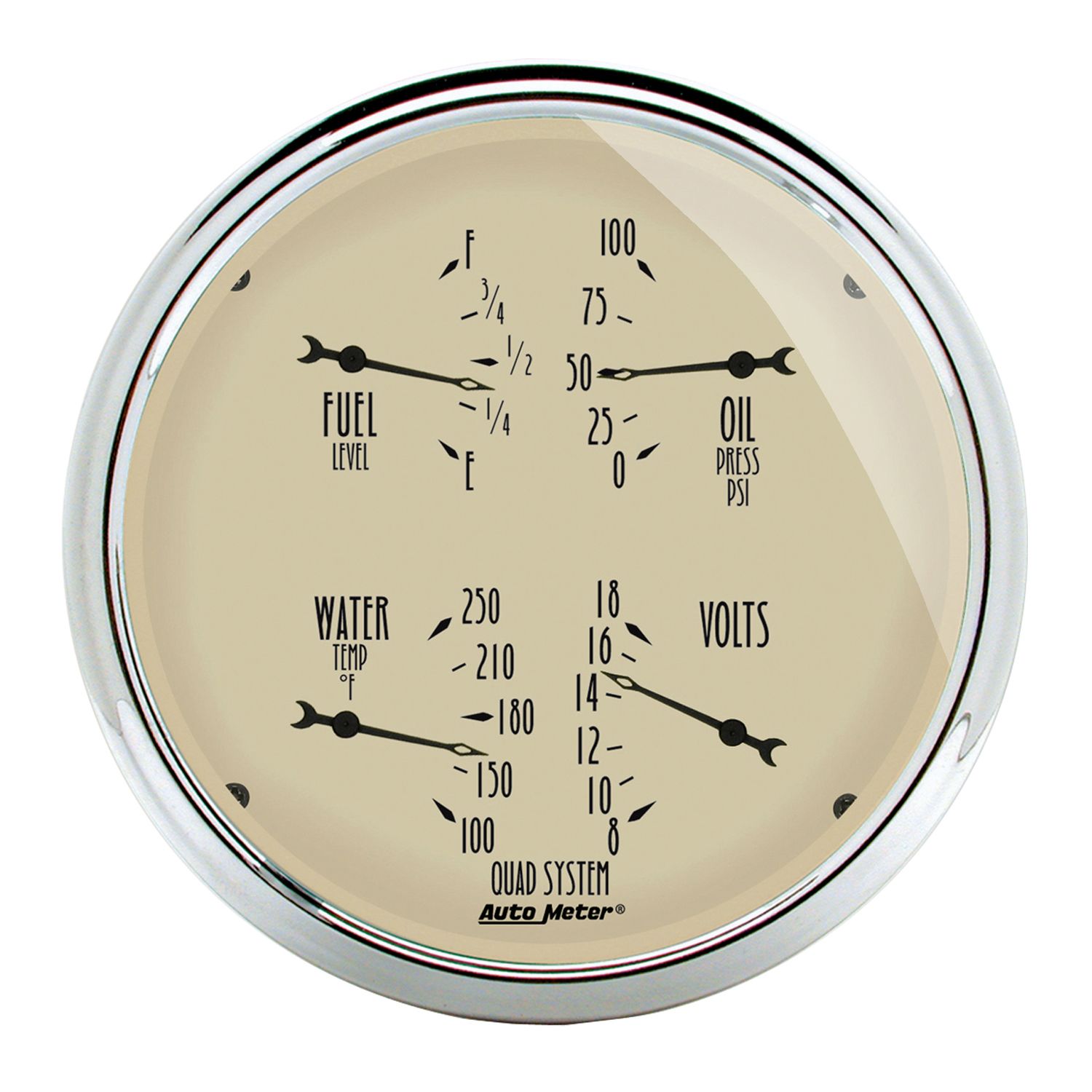

5" QUAD GAUGE, 100 PSI/100-250 °F/8-18V/0-90 Ω, ANTIQUE BEIGE

$285.86

Shipping in 2-4 business days

Free Shipping over $99

Hassle Free Returns

Quick Specs

Size:5" (127mm)
Type:Air-Core
Range:100 PSI/100-250 °F/8-18V/0ΩE-90ΩF
Lighting:Incandescent
Instructions: Download PDF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DESCRIPTION:

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60’s through mid 90’s GM fuel level senders).

Feature Points

Traditional incandescent lighting illuminates around the perimeter of the dial
4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Gauge kit includes 1/8" NPT pressure sender, 1/4" NPT adapter, 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Domed Lens

Ships With

Includes Sending Unit: Oil Sender 2242 - Water Sender 2258
3/8" NPT and 1/2" NPT adapter fittings
Bracket Included

REVIEWS:

QUESTIONS:

I need a guage cluster that is compatable with a 351 SB Ford.

Asked by: jfrancis44

There are no gauges we offer that are specifically designed as a direct OEM replacement. This gauge would be compatible with a small block Ford engine, except for the fuel level sender. We offer only this 0-90 ohm option and a 240-33 ohm option. Your Ford will likely have something different which will require you to replace the sender or use our 9109 Fuel Bridge.

Answered by: Matt from AutoMeter

Date published: 2022-01-23
