In stock
Product
1312

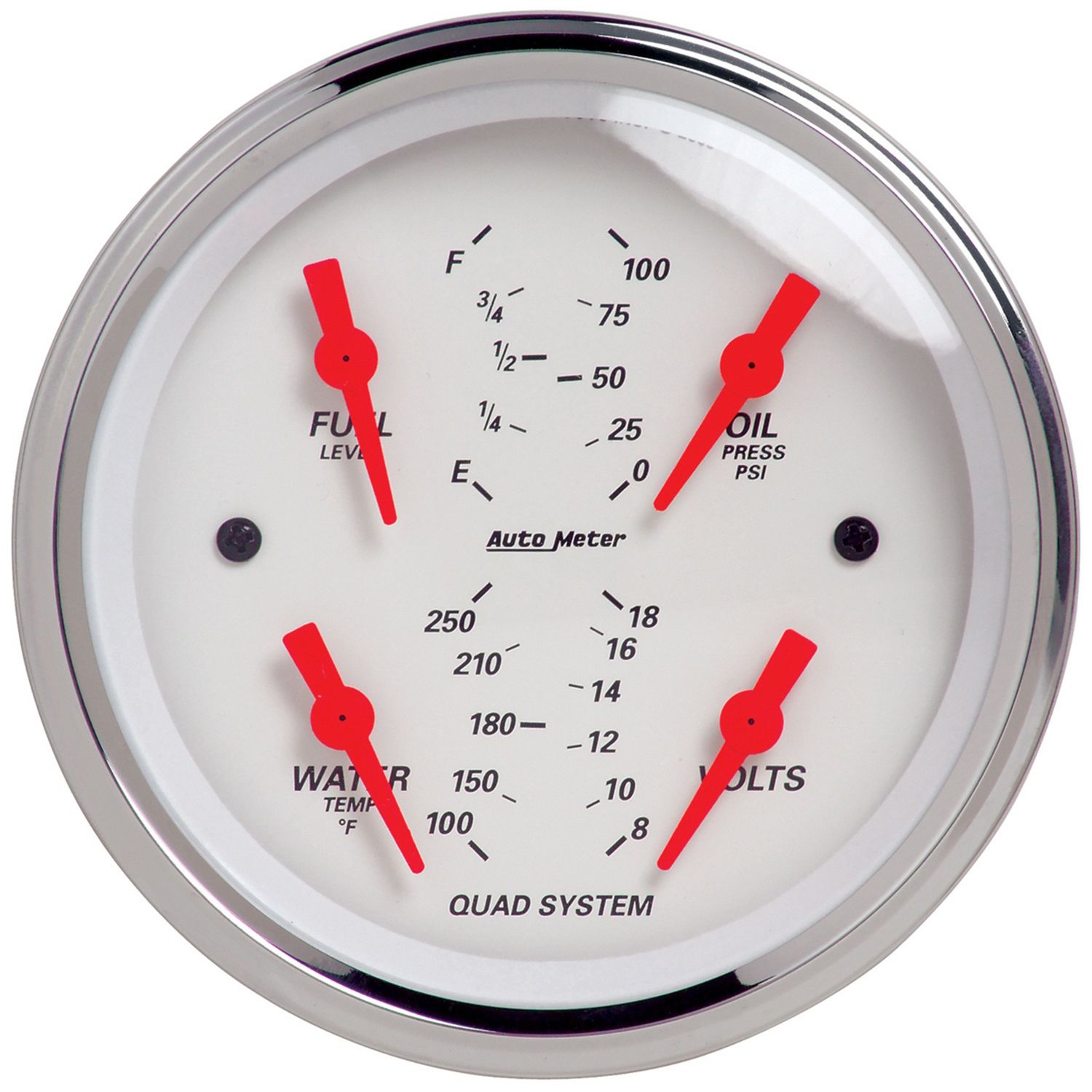

3-3/8" QUAD GAUGE, 100 PSI/100-250 °F/8-18V/240-33 Ω, ARCTIC WHITE
$255.00
Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns
Quick Specs
- Size:3-3/8" (85.7mm)
- Type:Air-Core
- Range:100 PSI/100-250 °F/8-18V/240ΩE-33ΩF
- Lighting:Incandescent
- Instructions: Download PDF
DESCRIPTION:
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).
Feature Points
Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- Gauge kit includes 1/8" NPT pressure sender, 1/4" NPT adapter, 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- Domed Lens
- Includes Sending Unit: Oil Sender 2242 - Water Sender 2258
- 3/8" NPT and 1/2" NPT adapter fittings
- Bracket Included
![prop65](https://www.autometer.com/static/frontend/Fivethirtyml/autometer/en_US/images/prop65.png)
REVIEWS:
QUESTIONS:
I have quad guage1312 and universal wiring harness 2178 which states “not intended for quad guages “… I have a tach and speedometer (Auto meter) also . Can this harness be used by connecting the individual wires coming from the sending units to the quad ?
Please give our tech support team a call at 866.248.6357 so we can better understand what you're trying to do.
Date published: 2024-06-19
Is it possible to get the fuel gauge in 0-90 ohm?
Please look at P/N: 1314.
Date published: 2024-01-08
Hello. How is the fuel gauge hooked up. I have a 1986 Austin Mini with this gauge but it’s not wired up.. Thanks David
For the fuel reading on this gauge you simply need to run a wire from the fuel spade to the signal terminal on a 240-33 ohm sending unit. The full instructions for that gauge can be found at: https://www.autometer.com/pub/media/manual/2650-1178.pdf
If you have specific questions we can help with please give our tech support team a call.
Date published: 2023-11-27
Is it possible to get this gauge that reads oil psi, oil temp, water temp, and transmission temp?
Thank you for your question. We do not offer a quad gauge in that configuration.
Date published: 2021-01-21
