In stock
Product
1714

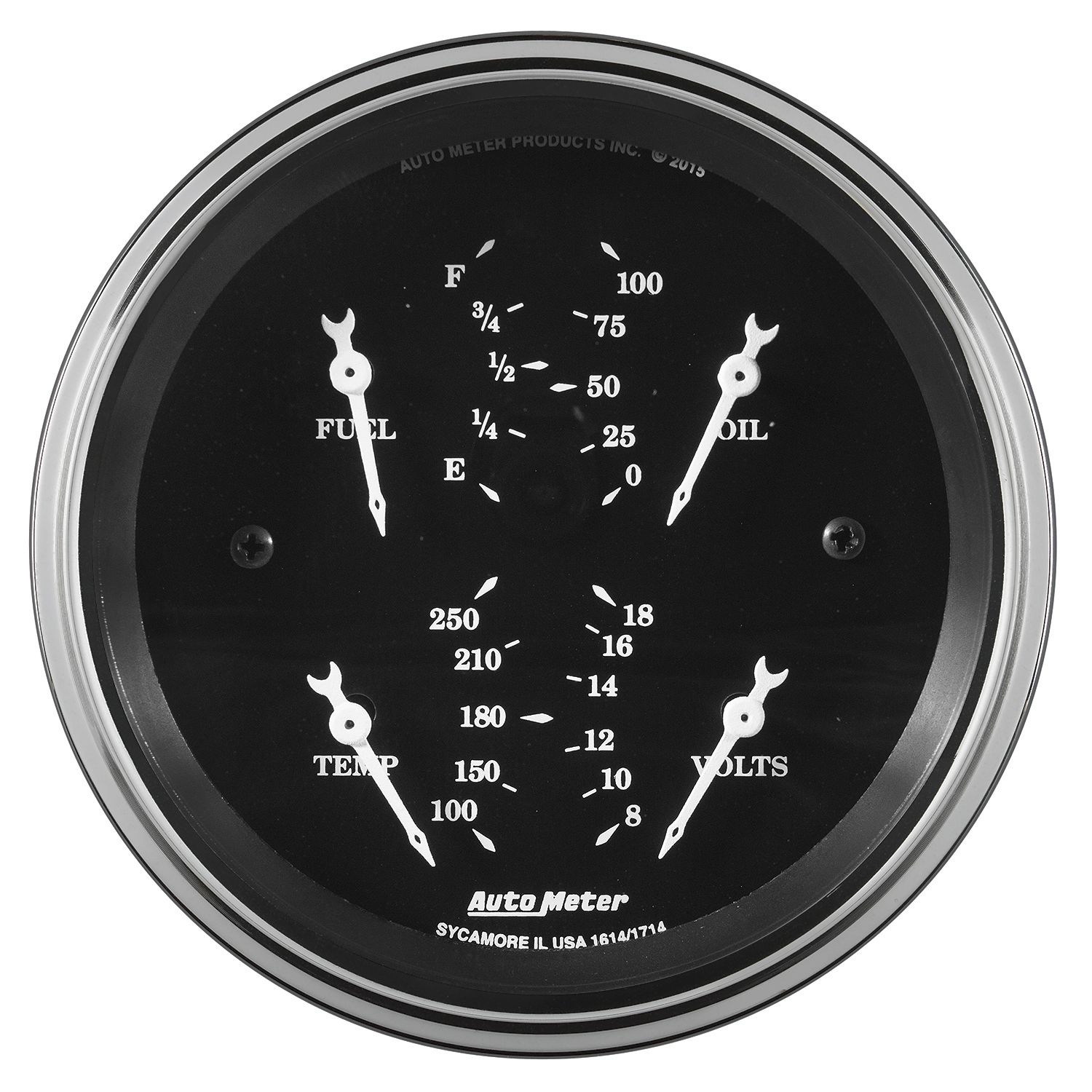

3-3/8" QUAD GAUGE, 0-90 Ω, OLD TYME BLACK
$223.33
Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns
Quick Specs
- Size:3-3/8" (85.7mm)
- Type:Air-Core
- Range:100 PSI/100-250 °F/8-18V/0ΩE-90ΩF
- Lighting:Incandescent
- Instructions: Download PDF
DESCRIPTION:
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60’s through mid 90’s GM fuel level senders).
Feature Points
Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- Gauge kit includes 1/8" NPT pressure sender, 1/4" NPT adapter, 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- Domed Lens
- Includes Sending Unit: Oil Sender 2242 - Water Sender 2258
- 3/8" NPT and 1/2" NPT adapter fittings
- Bracket Included
Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
REVIEWS:
QUESTIONS:
installing in a 56 t-bird bezel, do you have a coresponding, tach, 6k-7-k that i can use alone with this gauge
We only have a 3-3/8" tachometer with a 0-8k RPM P/N: 1790.
Date published: 2020-05-29
will this fuel gauge work with a plymouth set up? 1966 plymouth
Thank you for the question. The 1714 features a 0-90 ohm sender, which is typically a GM style sender. Your 1966 Plymouth would use a 73-10 ohm sender, which we offer in many styles, but not in a Quad Gauge configuration. There is also a 240-33 ohm option in model 1713. To use either of these instruments, you would have to replace your fuel level sender with either a 0-90 ohm or 240-33 ohm.
Date published: 2023-06-17
