In stock
Product
1414

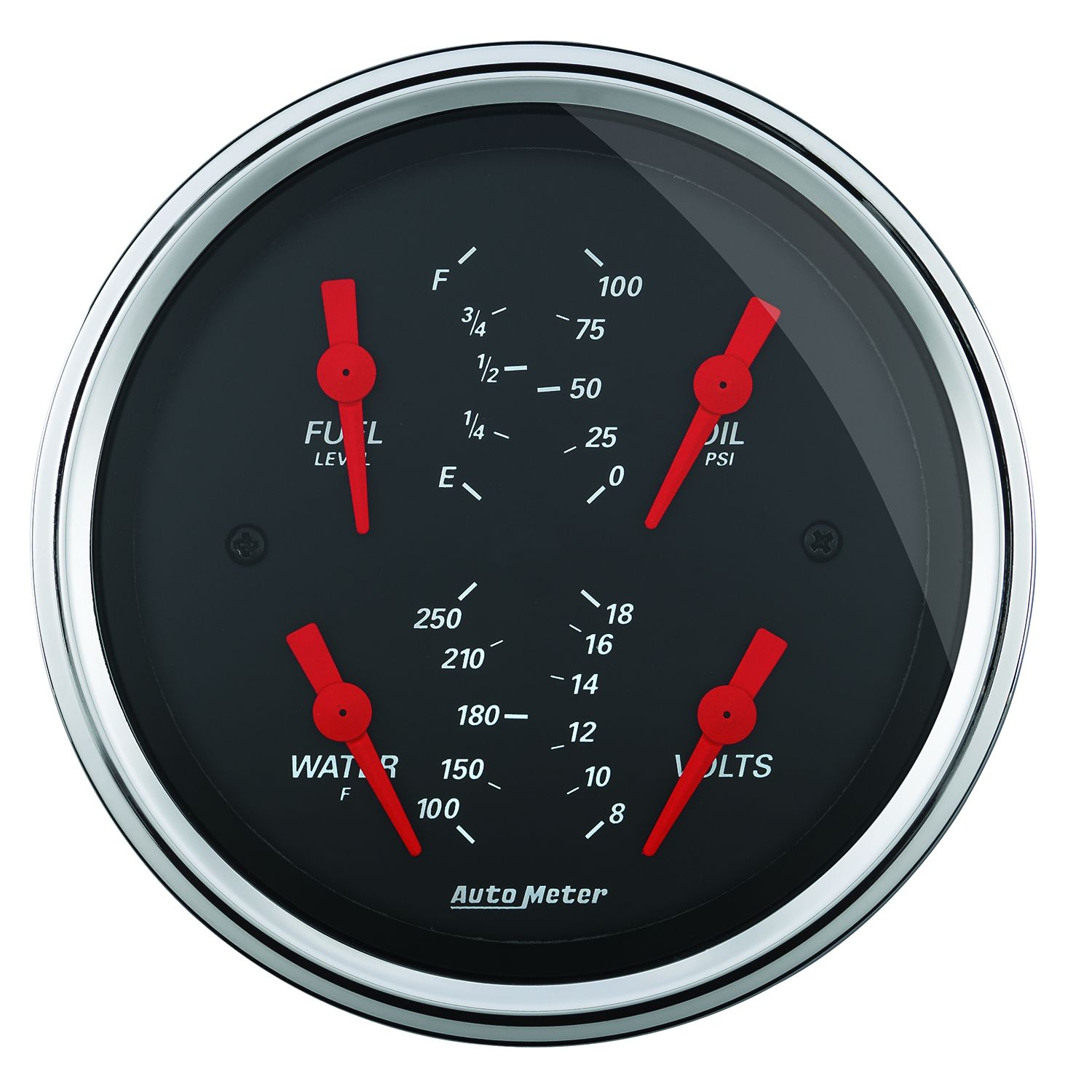

3-3/8" QUAD GAUGE, 100 PSI/100-250 °F/8-18V/0-90 Ω, DESIGNER BLACK
$212.26
Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns
Quick Specs
- Size:3-3/8" (85.7mm)
- Type:Air-Core
- Range:100 PSI/100-250 °F/8-18V/0ΩE-90ΩF
- Lighting:Incandescent
- Instructions: Download PDFDownload PDF
DESCRIPTION:
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60’s through mid 90’s GM fuel level senders).
Feature Points
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- Gauge kit includes 1/8" NPT pressure sender, 1/4" NPT adapter, 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- Domed Lens
- Includes Sending Unit: Oil Sender 2242 - Water Sender 2258
- 3/8" NPT and 1/2" NPT adapter fittings
- Bracket Included
REVIEWS:
QUESTIONS:
There are photos of this product with a Silver Bezel and Black Bezel, but only one part number is shown for both? How do I assure I get this with a Black Bezel and not a Silver Bezel, or does the Gauge come with both that can be swapped out?
I apologize for any confusion. The gauges in the Designer Black series all have a silver bezel. The photos where it appears to be black is just with the lights out showing how the back lighting shows up on the face. If you would like to custom order a gauge with a different bezel please give our customer service team a call at 866.248.6356 and they can take the order for you.
Date published: 2023-04-27
Is fuel gauge available in 75-10 ohm for early ford cars
Hi There, We do have options for 73-10 gauges that are linear and also non-linear. We would not have them in the quad gauges. If you would like, contact our tech team for additional help.
Date published: 2022-12-29
Hi can this be mounted into a gauge pod to sit on the dash? Thanks regards Glen
Hello Hath, thank you for your question. It can be possible with our 3-3/8" mount, part #: 5204 or 5203.
Date published: 2021-09-14
Hi, Is the casing actual 3 3/8 inch diameter Thanks
Hi yes it is 3 3/8
Date published: 2019-07-04
