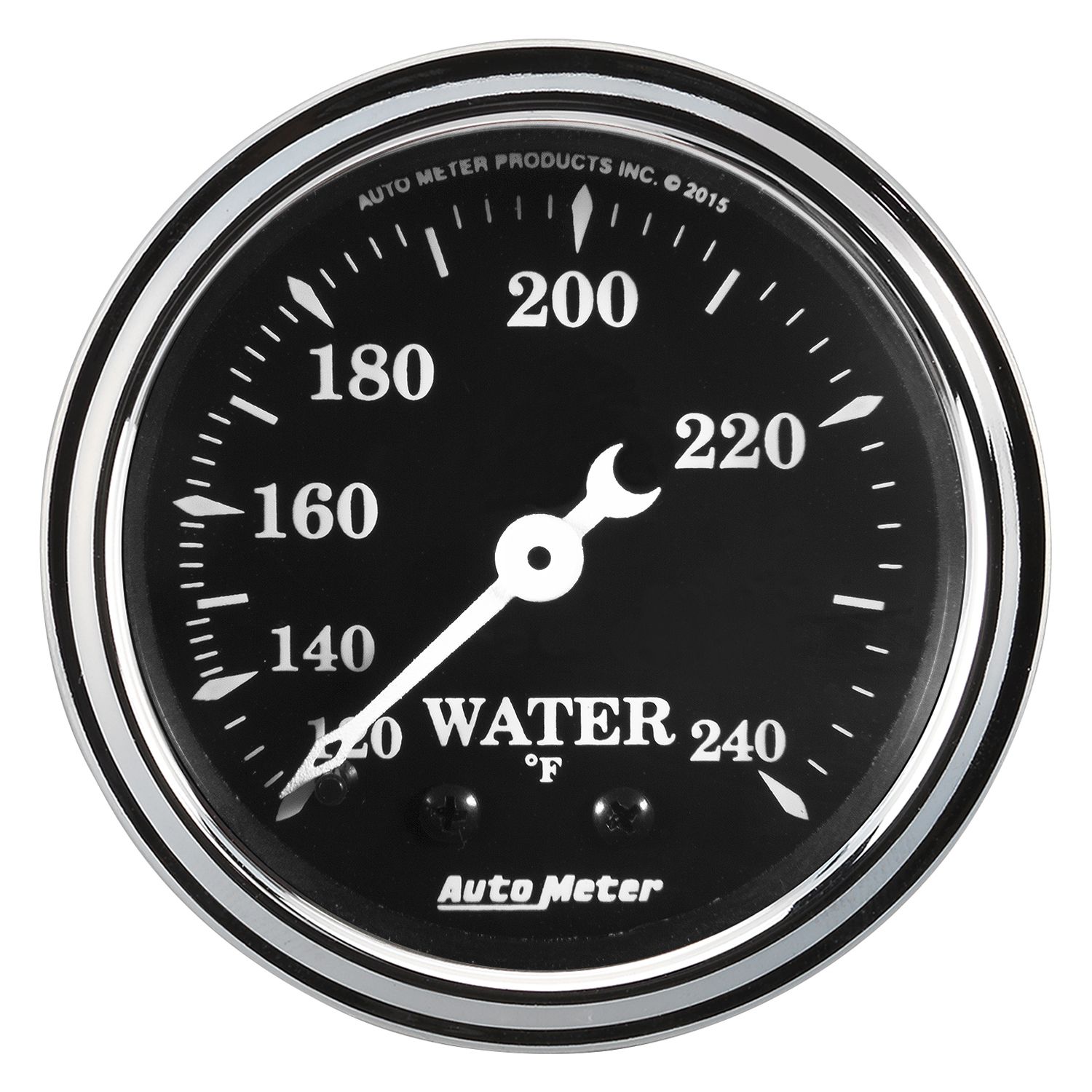

Engines don’t like high water temperatures, Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate, quickest responding water temperature gauge on the market. AutoMeter’s advanced bourdon tube meter movement provides unparalleled performance in the most demanding applications. A 6’ capillary tube and 1/2” NPT mounting nut are included.

Feature Points

Traditional incandescent lighting illuminates around the perimeter of the dial
AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
No electrical system required for gauge operation - compatible with every street or race vehicle
Mechanical movements provide accuracy and durability even in the harshest environments
Gauge kit includes 1/2" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Domed Lens

Ships With

1/2" NPT adapter/fitting.
2230

Videos:

REVIEWS:

Rated 2 out of 5 by Utah Series from Needle is jumpy The needle doesn't gradually increase as the engine temp does. After it finally registers the needle shoots up to 230 degrees and rapidly drops down to 180 but seems really jerky and not smooth as I would have suspected. It takes a while for the gauge to stabilize and work as it should.

Date published: 2021-03-31

QUESTIONS:

Do you have a capillary tube available that is longer than 6 foot?

Asked by: SC2825

We do not have an Old Tyme Black temperature gauge that comes with a longer capillary tube. However, you can give us a call and special order one with a longer capillary. Our sales team can be reached at 866.248.6356

Answered by: Alex at AutoMeter

Date published: 2022-10-17

I need a 1/4" npt probe. will this work or can an adapter be used? thanks

Asked by: douwe

Thank you for your inquiry. Our mechanical water temp gauges are not adaptable to 1/4" NPT. You can adapt the sender from our electric gauges to 1/4" NPT however. You might consider model 1737 in this application: https://www.autometer.com/2-water-temp-100-250-f-old-tyme-black.html

Answered by: Jim from AutoMeter

Date published: 2019-12-13
