Product
8586

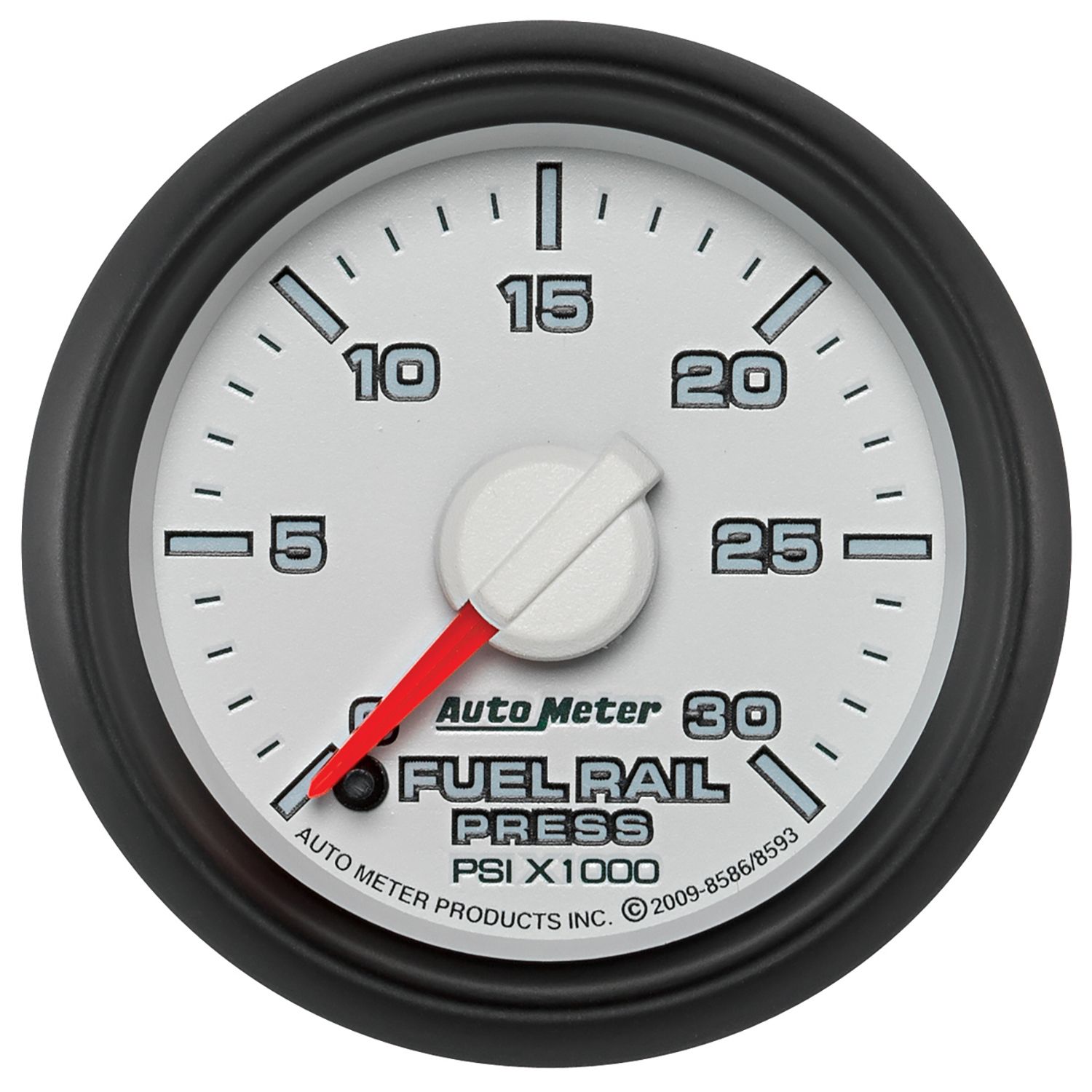

2-1/16" FUEL RAIL PRESSURE, 0-30K PSI, STEPPER MOTOR, GEN 3 DODGE FACTORY MATCH
$261.50
Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns
Quick Specs
- Size:2-1/16" (52.4mm)
- Type:Digital Stepper Motor
- Range:0-30K PSI
- Lighting:LED
- Instructions: Download PDF
DESCRIPTION:
Ultra high pressures in modern direct injected diesel applications require precise monitoring to assure the longevity and power output of your engine. Using AutoMeter’s advanced Digital Stepper Motor Drive, this gauge provide the most accurate possible reading, professional grade reliability and smooth pointer movement. Connects directly to your factory sensor with an included wiring harness.
Feature Points
Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
- Factory matched LED through-the-dial lighting provides clear visibility during nighttime use and matches OEM instrumentation
- Gauge kit includes wiring harness, mounting hardware, and detailed instructions for installation
- Included wire harness connects to original equipment fuel rail pressure sensor wiring
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Wire Harness: Call AutoMeter Technical Support At 1-866-248-6357
- 2230
Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
REVIEWS:
QUESTIONS:
What led bulb do these take?
This gauge use LEDs that are mounted directly to the circuit board. This is what gives it the through the dial face lighting instead of traditional backlighting. Unfortunately due to this it cannot be changed like a traditional light bulb.
Date published: 2023-02-09
Hello, We are looking for a factory match 2 1/16 fuel rail pressure gauge for a 2006 Dodge There are two part number listed for 3rd gen dodge 8556 and 8593. What gauge do we use for the 5.9 common rail 2006?
Thank you for your question. The 8586 is designed for use with 5.9L trucks, the 8593 is for 6.7L trucks.
Date published: 2021-02-09
Can i use the 8586 gauge with the 2246 transducer?
Hi Steelerd,
The 8586 is designed to wire directly to the output from the OEM rail pressure sensor. It does not have the correct harness or plug to mate up with the 2246 sender and would not read correctly if it was somehow adapted.
Thanks,
Jim
Date published: 2020-04-03
On the installation instructions says to just strip the wire could I cut the wire do the next steps and use heat shrink or that will give me erroneous readings
Hi Kirby, thank you for the question. Since the factory sensor is critical the truck, we recommend leaving the factory wire intact and not risk cutting it completely.
Date published: 2018-03-27
I have recently purchased a 8586 rail pressure gauge. The instructions show a white wire for lighting but the plug-in harness does not have a white wire. It has one red, one purple and two blacks. Please advise as to how I power the lighting.
Hi Grant, thank you so much for contacting us. I think the best course of action would be to have you contact our tech team at 866.248.6357 and we can walk through it with you to get your lighting circuit working. We are available M-F, 8am - 5pm CST. You can also reach us via the Chat link at the top of every page during the same hours or email us here:
https://www.autometer.com/resources/index/ask_a_question
Hope this helps!
Date published: 2018-01-17
