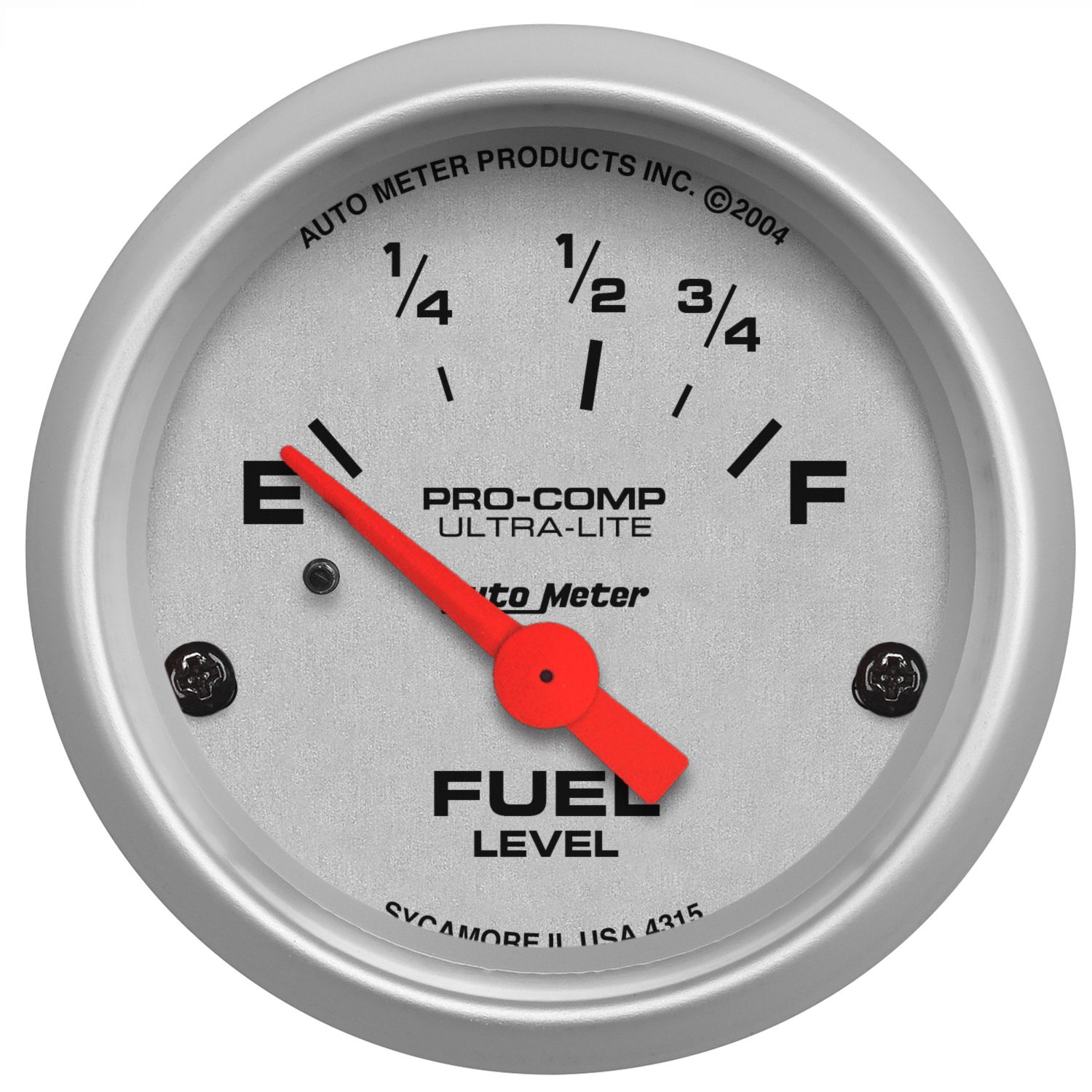

2-1/16" FUEL LEVEL, 73-10 Ω, AIR-CORE, UL

$67.99

Shipping in 5 business days

Free Shipping over $99

Hassle Free Returns

Quick Specs

Size:2-1/16" (52.4mm)
Type:Air-Core
Range:73 Ω Empty / 10 Ω Full (NON-LINEAR)
Lighting:Incandescent
Instructions: Download PDF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DESCRIPTION:

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering a variety of different fuel level gauges to match the resistance range of your existing fuel sending unit. Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks. Don’t get stranded down the road or at the track.

Feature Points

Traditional incandescent lighting illuminates around the perimeter of the dial
Works with most Pre-1989 (Pre-1987 Mustang) Ford and most Chrysler
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
AutoMeter’s race proven air-core electric instruments provide quick and accurate readings

Ships With

2230

REVIEWS:

QUESTIONS:

I need a Guage with 0-5 Full to 70-80 Empty will this work?

Asked by: Jeepster

We can only tell you this gauge is designed for 73 ohms empty and 8-10 ohms full. It will be close, but not perfect.

Answered by: Jim from AutoMeter

Date published: 2022-12-30

I have 4315 fuel level gauge in my truck ,fuel tank in ford truck si from 88 f150 when tank is low it reads 1/2 full, when full it reads empty/ do i have wrong gauge? which one should i have?

Asked by: 52willys

Generally if the gauge is reading wrong, it might be an issue that the ohm ranges are different. We would recommend checking the ohm range for the sending unit at full and empty and see what it is. From there, if you would like to email or phone the tech department, they might be able to steer you in the right direction.

Answered by: Thomas From AutoMeter

Date published: 2022-05-10
