In stock

Product

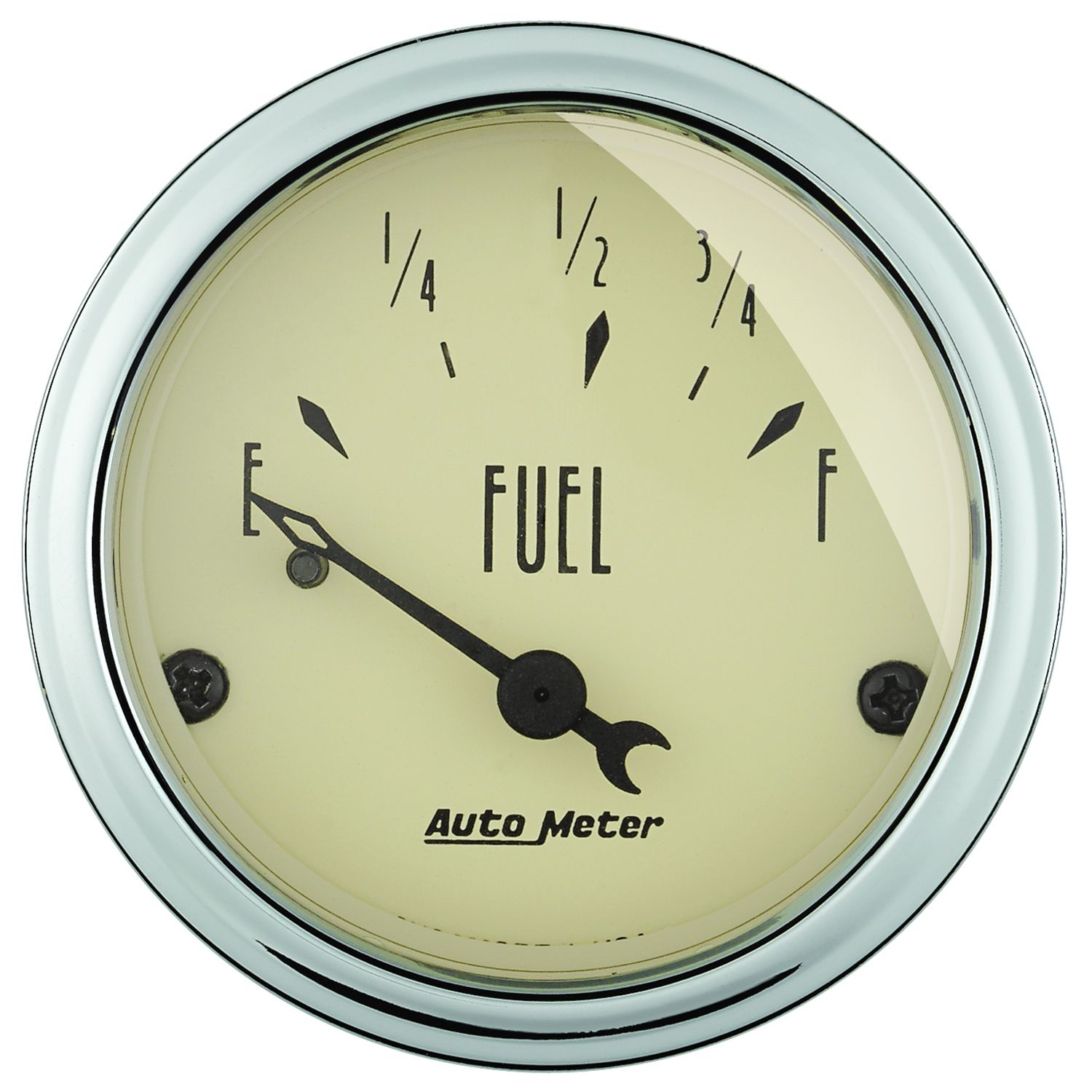

2-1/16" FUEL LEVEL, 73-10 Ω, AIR-CORE, ANTIQUE BEIGE

$57.05

Shipping in 2-4 business days

Free Shipping over $99

Hassle Free Returns

Quick Specs

Size:2-1/16" (52.4mm)
Type:Air-Core
Range:73 Ω Empty / 10 Ω Full (NON-LINEAR)
Lighting:Incandescent
Instructions: Download PDF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DESCRIPTION:

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering a variety of different fuel level gauges to match the resistance range of your existing fuel sending unit. Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks. Don’t get stranded down the road or at the track.

Feature Points

Traditional incandescent lighting illuminates around the perimeter of the dial
Works with most Pre-1989 (Pre-1987 Mustang) Ford and most Chrysler
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
AutoMeter's race proven air-core electric instruments provide quick and accurate readings
Domed Lens

Ships With

2230

REVIEWS:

QUESTIONS:

i replaced my fuel gauge with ATM-1815. When i fill up the car, the gauge goes down. it goes up, when the fuel is used.

Asked by: musty34

The 1815 is designed for a 73 ohm empty and 10 ohm full sender. It is apparently not a match for your sending unit. You will need to find out the sender resistance in your car, then contact us for assistance at 866-248-6357.

Answered by: Jim from AutoMeter

Date published: 2023-08-21

this gauge is a non linear, I need a linear because I have a after market sender, what would the stock number be

Asked by: Don48

Hi There, It does not look like we have the linear version of this in the Antique Beige series. If you would still like this gauge, you could pair it with the 9109 for optimal compatibility with your sending unit.

Answered by: Thomas From AutoMeter

Date published: 2022-03-09

will the sending unit replace the sending unit that is located in the gas tank? I have a 1959 willys cj5

Asked by: nanneyman

Thank you for your question. This gauge is designed to work with a 73-10 ohm sender. If your factory sender is working, it may be a 73-10 ohm sender, which this gauge would be directly compatible with.

Answered by: Sarah from AutoMeter

Date published: 2021-10-04

looking for gauge for a 1946 Willys wagon, Sounds correct with full at 10 and empty at 75. Are there three posts - power, ground, sending unit ?? thanks Mike

Asked by: miken

Thank you for contacting us. That is correct, the gauge has three terminals on the back for power. ground, and signal.

Answered by: Sarah from AutoMeter

Date published: 2021-09-14

Hi. Which tachmoeter is sutiable with this design

Asked by: metin

hi, jeep Cherokee xj 1996 fuel sender ohms 5 ohms full, 33 ohms 1/2 and 105 ohms empty (according service manual) what ohms category(0-90, 240-33, 73-10) should i use for the gauge? looks like there is no one with exact ohms...

Asked by: edgar
