Product
5403

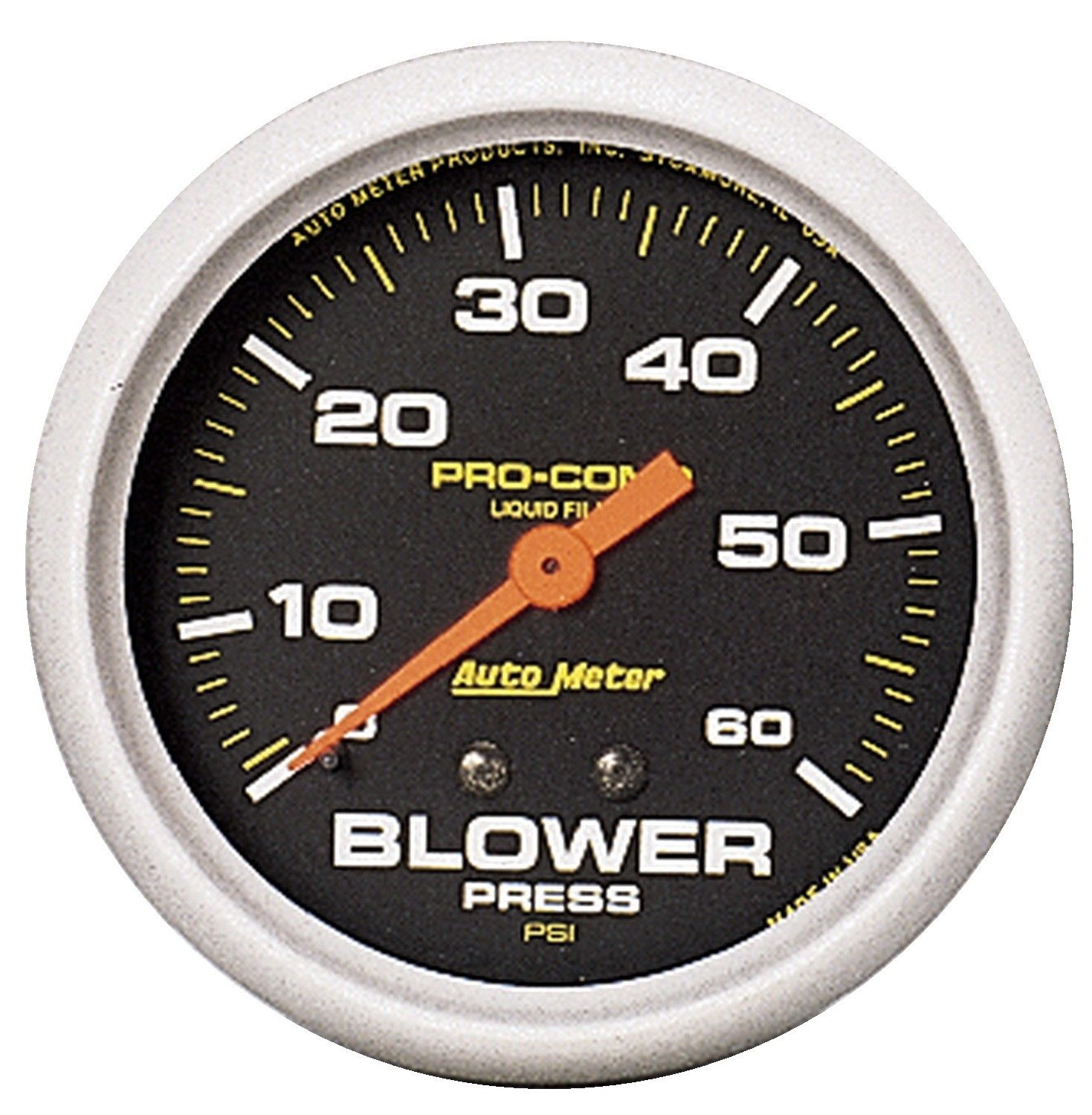

2-5/8" BLOWER PRESSURE, 0-60 PSI, MECHANICAL, W/ MEMORY, LIQUID FILLED, PRO-COMP
$157.99
Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns
Quick Specs
- Size:2-5/8" (66.7mm)
- Type:Mechanical
- Range:0-60 PSI
- Lighting:Incandescent
- Instructions: Download PDF
DESCRIPTION:
Know your exact blower pressure with AutoMeter’s ultra-precise bourdon tube meter movement, the standard for accuracy and durability in the industry for generations. A simple 1/8” NPT pressure connection requires no electrical hookup for operation. An optional blower memory kit provides a one way check valve for peak recall after your run.
Feature Points
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
- Liquid filled design for superior resistance to shock, vibration, and the elements.
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Gauge kit includes 1/8” nylon line, 1/8” NPT compression fittings, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
- 3245
REVIEWS:
QUESTIONS:
Is there way to reset back to zero? Mine is reading 10
Thank you for contacting us. Be sure to vent the gauge using the vent screw at the top. There could potentially be enough atmospheric pressure difference from what's inside the gauge vs the outside to put pressure on the movement. Also, check that the pin sized pressure port is clear. We've seen debris, like strands of sealant tape, plug that orifice up and hold a small amount of pressure in the gauge. If you've tried those with no results, we may need to get the gauge back here for evaluation: http://www.autometer.com/media/Service_Form.pdf
Date published: 2017-12-18
