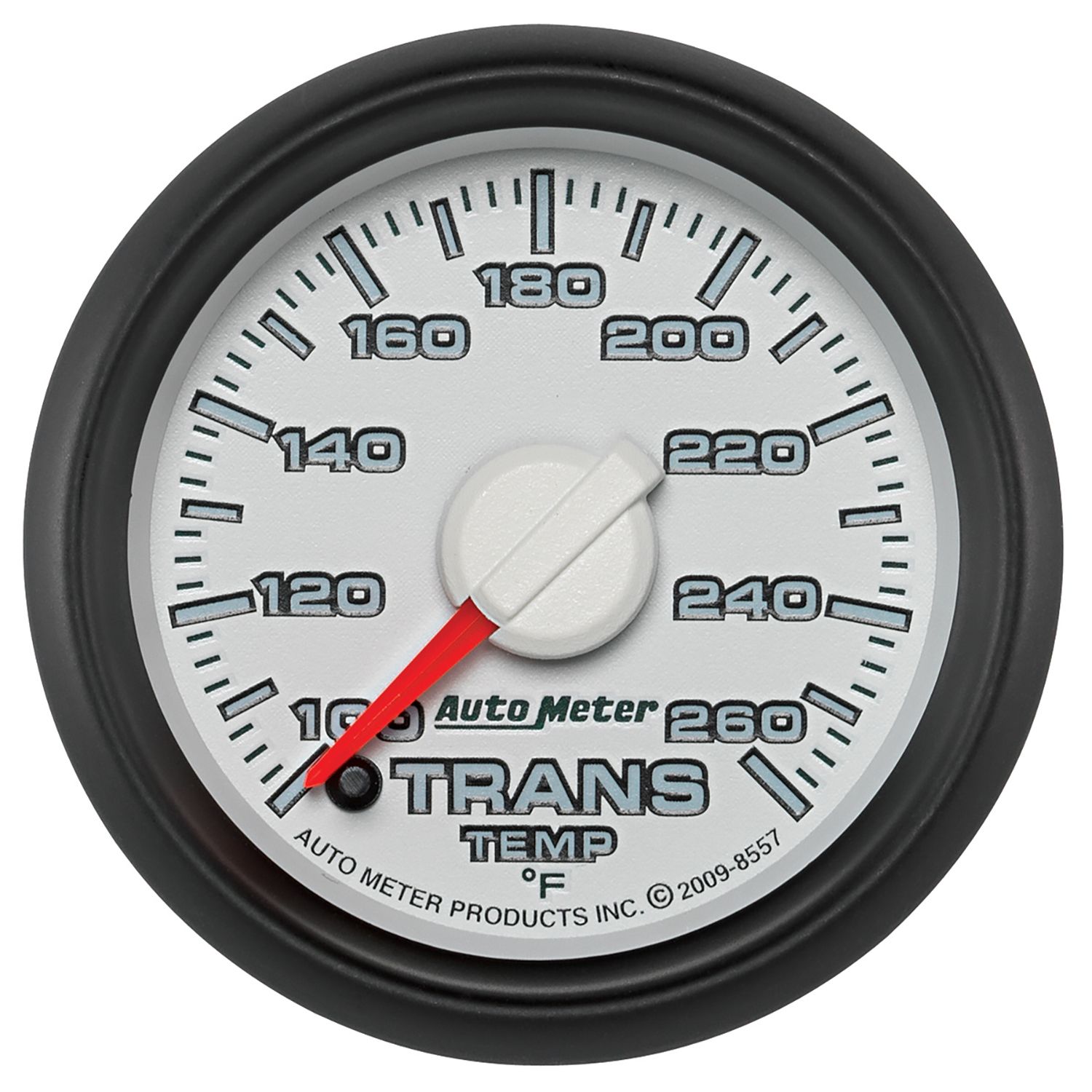

2-1/16" TRANSMISSION TEMPERATURE, 100-260 °F, STEPPER MOTOR, GEN 3 DODGE FACTORY MATCH

$165.99

Shipping in 2-4 business days

Free Shipping over $99

Hassle Free Returns

Quick Specs

Size:2-1/16" (52.4mm)
Type:Digital Stepper Motor
Range:100-260 °F
Lighting:LED
Instructions: Download PDF Download PDF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DESCRIPTION:

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, AutoMeter’s Digital Stepper Motor Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. AutoMeter’s most advanced 1/8” NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.

Feature Points

Factory matched LED through-the-dial lighting provides clear visibility during nighttime use and matches OEM instrumentation
Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up

Ships With

Includes Sending Unit: 2252
3/8" NPT and 1/2" NPT adapter fittings
Wire Harness: 5226
2230

REVIEWS:

QUESTIONS:

Do you have a picture or a pin out for the plug in the back of this gauge? The red and yellow wires from the sensor got pulled out of mine and I need to know where they go.

Asked by: Kyle1

Hi Kyle, thank you so much for contacting us. A transmission temp gauge like this actually does not use red and yellow wires for the sensor. You can see the exact pinout here: https://www.autometer.com/media/Full_Sweep_Temperature.pdf With that said, these gauges are very commonly paired with pyrometers, which do use red and yellow wires for the sender. Assuming that may be what you meant, here is the pinout for that gauge: https://www.autometer.com/media/Pyrometer_with_Stepper_and_LED_Lighting.pdf Hope this helps!

Answered by: Joseph At AutoMeter

Date published: 2018-04-09

How deep is the gauge? From the back of bezel to end of longest extreme. Thank you.

Asked by: JBuzz

Hi Buzz, thank you for the question. 2-9/16" is the total depth from back of the bezel to the very end of the mounting studs. For cup mounts and pod mounts, where the mounting studs won't be used, they can be cut off to allow for approximately 2" of clearance.

Answered by: Matt from AutoMeter

Date published: 2018-03-19
