Product
4910

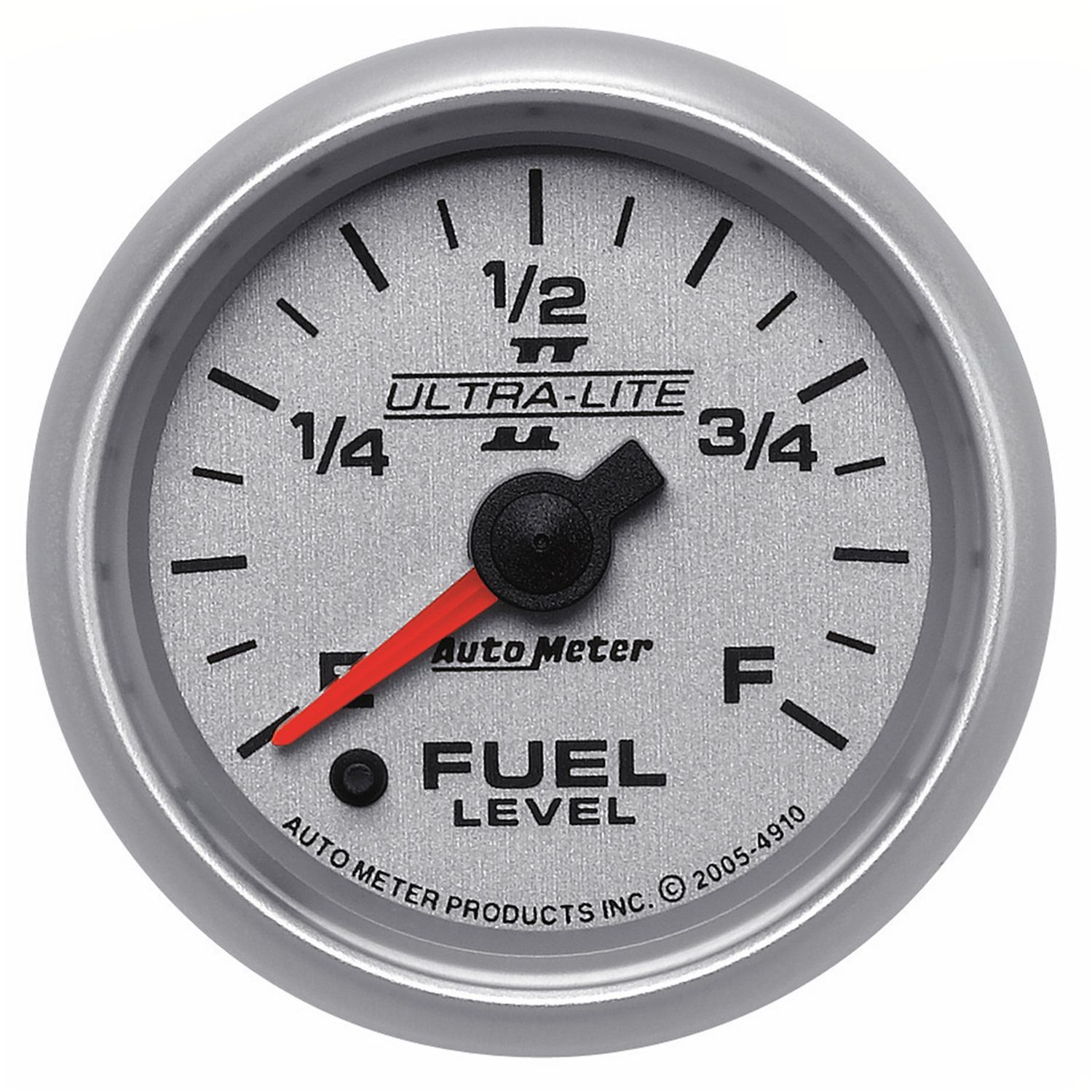

2-1/16" FUEL LEVEL, PROGRAMMABLE 0-280 Ω, STEPPER MOTOR, ULTRA-LITE II
$152.66
Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns
Quick Specs
- Size:2-1/16" (52.4mm)
- Type:Digital Stepper Motor
- Range:Programmable 0-280 Ω
- Lighting:LED
- Instructions: Download PDFDownload PDF
DESCRIPTION:
Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it’s easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our “snapshot” programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn’t an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.
Feature Points
Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation
- Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
- User definable resistance setting programmable anywhere between 0-280 ohms
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
- Wire Harness: 5233
- 2230
![prop65](https://www.autometer.com/static/frontend/Fivethirtyml/autometer/en_US/images/prop65.png)
REVIEWS:
QUESTIONS:
Installed and powered up with momentary switch, the pointer was pegged past full hitting the pin and making grinding noise then did the sweep thing but is way off the marks only going maybe1/2 tank and past ful, Isn't consistent with every power up either
Thank you for your question. Please call our tech line for more assistance at 866-248-6356.
Date published: 2021-02-09
Can I get this same gauge but in a 2-5/8 size?
Thank you for your inquiry. The 4910 Programmable Fuel Level Gauge is only available in 2-1/16". Due to the unique dials on these gauges, we are unable to create a larger version.
Date published: 2019-07-02
