In stock
Product
4310

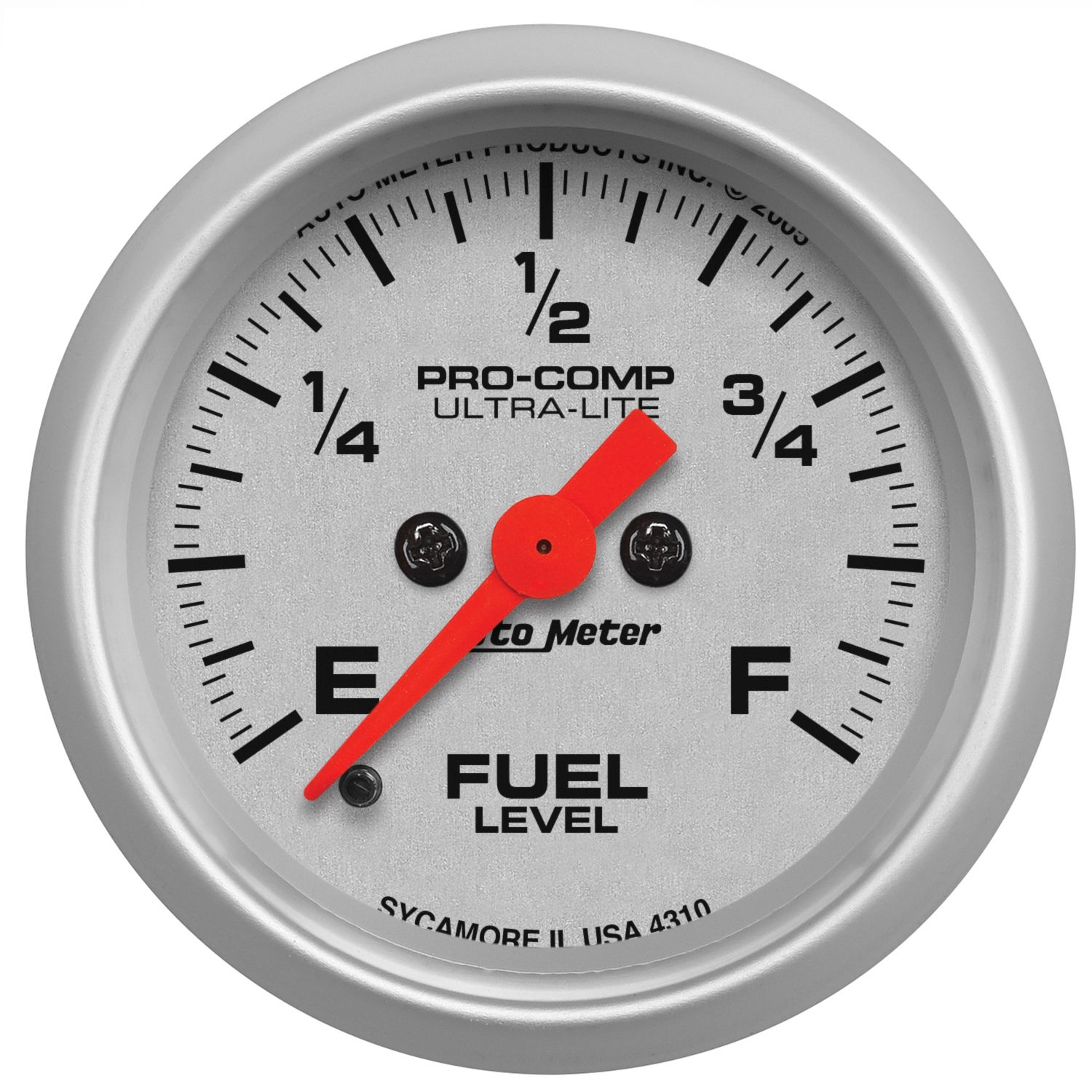

2-1/16" FUEL LEVEL, PROGRAMMABLE 0-280 Ω, STEPPER MOTOR, ULTRA-LITE
$138.09
Shipping in 5 business days
Free Shipping over $99
Hassle Free Returns
Quick Specs
- Size:2-1/16" (52.4mm)
- Type:Digital Stepper Motor
- Range:Programmable 0-280 Ω
- Lighting:Incandescent
- Instructions: Download PDFDownload PDF
DESCRIPTION:
Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it’s easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our “snapshot” programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn’t an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.
Feature Points
Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Gauge kit includes 20 ft. wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
- User definable resistance setting programmable anywhere between 0-280 ohms
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
- Wire Harness: 5233
- 2230
Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
REVIEWS:
QUESTIONS:
I have a 69 Chevelle uses a 90 ohms will this work or do you have a better option
You might consider this gauge, which is designed for 0-90 ohms:
https://www.autometer.com/2-fuel-level-0-e-90-f-gm-sse-ultra-lite.html
Date published: 2023-11-17
My tank has a tapered lower half such that when the resistance is half the fuel level is actually less than half. When the fuel level drops 3/8 down from full in the tank, the fuel volume is 1/2 empty. Can I program the gage to accommodate this?
This programmable gauge is totally dependent on float level. It cannot be calibrated to compensate for unique tank shapes.
Date published: 2022-04-28
I have a 67 Plymouth Belvedere. The ohm readings are 9.6 ohms full and 73 ohms empty. Will this gauge work for me?
Yes, this gauge features 7 presets, one being the 73-10 Chrysler options.
Date published: 2022-02-14
Hello, I'm trying to confirm that this gauge will work with the sending units in my boat which are 240-33 (240 empty-33 full). Thanks in advance.
This is a programmable fuel level gauge so if you go through the settings you will be able to select the correct fuel range. If you are not able to get a correct fuel range from the selected chart then you can always do a custom calibration specifically for your fuel level sending unit.
Date published: 2020-05-27
I have a 1995 gmc k2500 pickup. I recently installed a carter fuel pump in the tank. The gauge stepper motor has not been working( bouncing needle) for a while. Will this work as a standalone fuel gauge for my truck. The eigth number on my vin is.... k
Thank you for your inquiry. This programmable fuel level gauge will work with virtually any sender. Your 1995 GMC should have a 0-90 ohm sender and be compatible with this gauge.
Date published: 2020-02-18
I have just put this gauge in my GM holden 1986 model. the factory readings are empty = 283.0+-7ohms 1/2 tank=97.3 +-3 ohms full=40.0 +-2 ohms and the gauge was reading 1/2 full when the car run out of fuel. Can you help me fix this please.
Thank you for reaching out to us. The 4310 features several presets and a custom calibration. If your Holden is in fact a 283-40 ohm sender, this would require the custom calibration. We would recommend re-calibration via the Custom Sender Calibration instructions found here: https://www.autometer.com/media/manual/2650-1136.pdf
If you continue to have issues or additional questions, we'd recommend reaching out to our service team via email here: https://www.autometer.com/contacts
Date published: 2018-10-05
