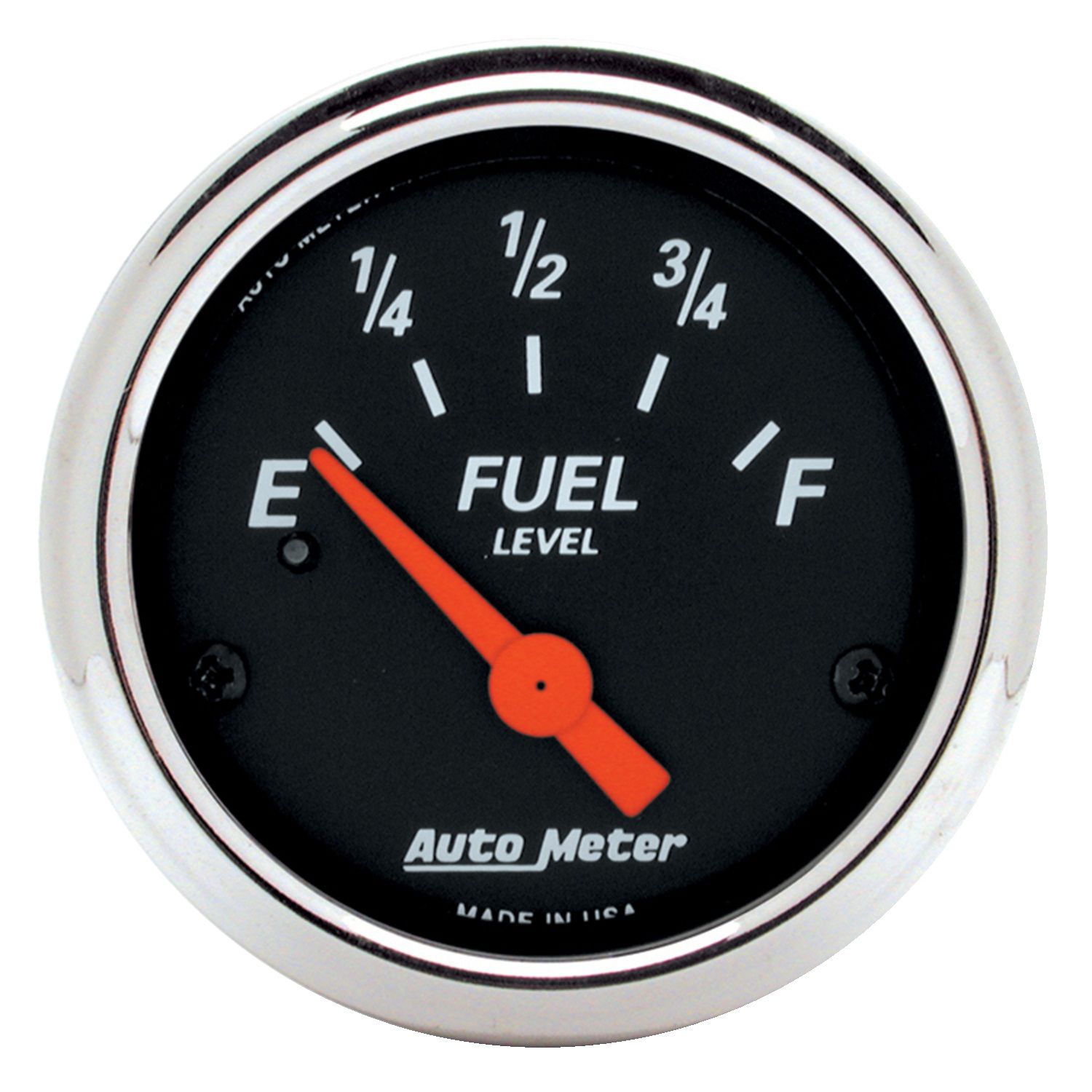

2-1/16" FUEL LEVEL, 240-33 Ω, AIR-CORE, DB

$69.93

Shipping in 2-4 business days

Free Shipping over $99

Hassle Free Returns

Quick Specs

Size:2-1/16" (52.4mm)
Type:Air-Core
Range:240 Ω Empty / 33 Ω Full
Lighting:Incandescent
Instructions: Download PDF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DESCRIPTION:

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering a variety of different fuel level gauges to match the resistance range of your existing fuel sending unit. Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks. Don’t get stranded down the road or at the track.

Feature Points

Traditional incandescent lighting illuminates around the perimeter of the dial
Works with 240E/33F ohm senders, including AutoMeter 3262
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
AutoMeter's race proven air-core electric instruments provide quick and accurate readings
Domed Lens

Ships With

2230

REVIEWS:

QUESTIONS:

I have a 1976 Triumph TR6 and need to install a new fuel gauge to the OEM sending unit. Does anybody know which ohm range would work with that OEM sender?

Asked by: Mick E

We would recommend doing some research on this. We cannot really provide definitive tuning answers to your question.

Answered by: Sarah from AutoMeter

Date published: 2021-11-12

Installed your fuel gauge ~ 15 yrs ago & it pegs past F at full tank & shows little under 1/2 tank at empty. Will check tomorrow to see which # gauge I have. With new info looks like I should use a 240-33 ohm meter with 240 being empty. 1976 Triumph TR6

Asked by: Mick E

This will likely require some troubleshooting with our Tech Support Team. Please reach out to us by email at [email protected].

Answered by: Sarah from AutoMeter

Date published: 2021-11-11

I have a boat with a flybridge and lower helm. The lower helm has a tach, oil pressure, water temp, and fuel level. The flybridge has all the gauges except fuel level. Questions is can I add a second fuel level gauge to the same sending unit?

Asked by: Phillip

Hello Phillip, thank you for your question. Unfortunately, you cannot put two fuel level gauges to the same sender. There is a path of resistance that goes from the sender to the gauge and if you used two gauges with the same sender you would end up with skewed readings.

Answered by: Zach from AutoMeter

Date published: 2018-09-12
