Product
1214

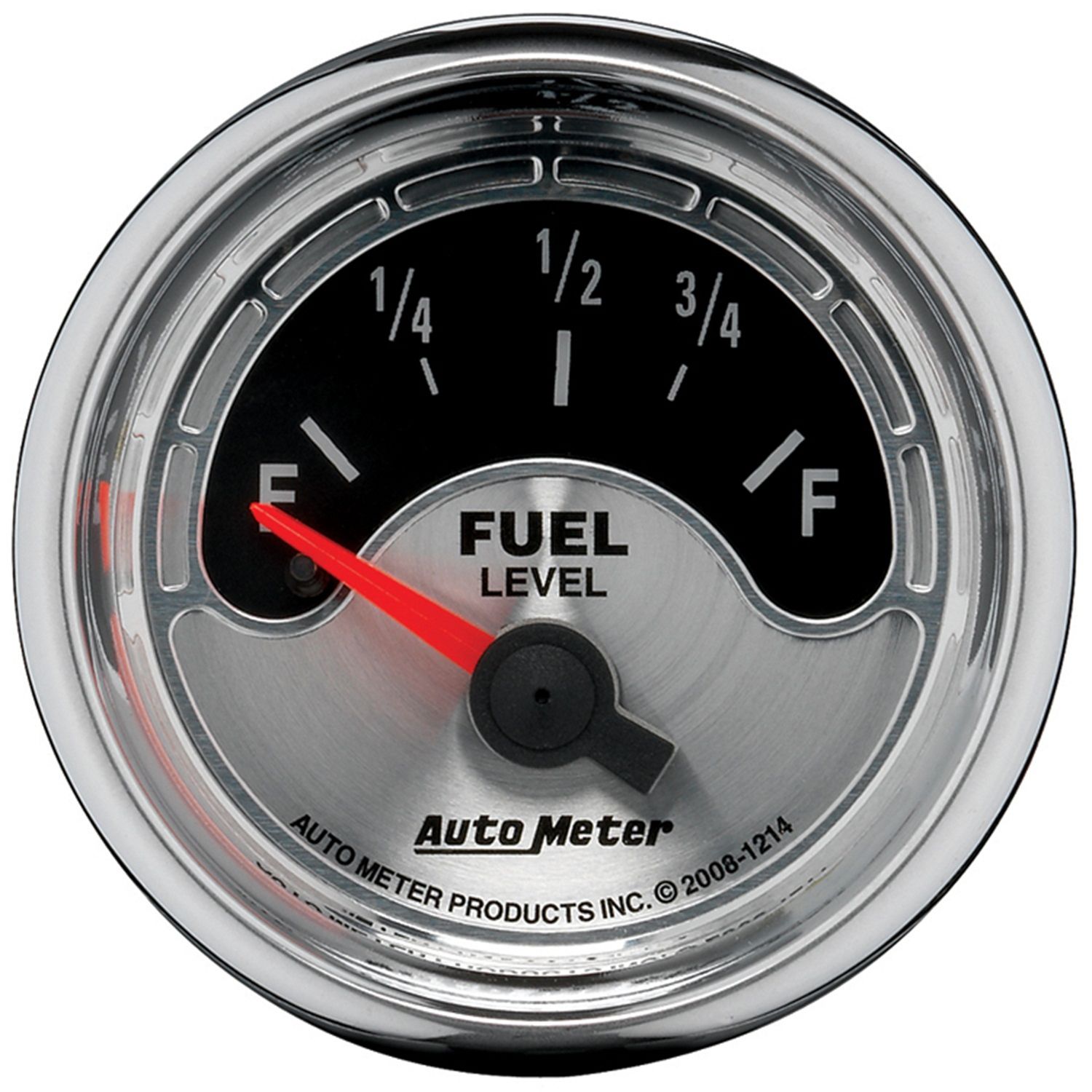

2-1/16" FUEL LEVEL, 0-90 Ω, AIR-CORE, SSE, AM MUSCLE
$89.39
Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns
Quick Specs
- Size:2-1/16" (52.4mm)
- Type:Air-Core
- Range:0 Ω Empty / 90 Ω Full
- Lighting:LED
- Instructions: Download PDF
DESCRIPTION:
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering a variety of different fuel level gauges to match the resistance range of your existing fuel sending unit. Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks. Don’t get stranded down the road or at the track.
Feature Points
Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Works with most 1965 to 1997 Chevrolet/GM senders
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes mounting hardware and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings
- 2230
Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
REVIEWS:
QUESTIONS:
Hello, I have a 1961 impala and I think it calls for a 0-30 ohm fuel level gauge. I’m looking at American Muscle Air Core, is there a gauge for this application ?
American Muscle does not have a specific 0-30 ohm fuel level gauge. You can use this programmable model:
https://www.autometer.com/2-1-16-fuel-level-univ-stepper-am-muscle.html
Date published: 2023-03-13
i have the american muscle series gauges, recently bought a tubular style sending unit pre-set at 10 empty and 80 full...can i use the 0 ohms/90 ohms guage and still be within range
The gauge will never read all the way full or all the way empty with that sending unit. If you want the gauge to read accurately you would either need to use a 0-90 sending unit or a 9109 fuel bridge.
Date published: 2023-03-02
Hey i have a set of auto meter pro comp ultra light electric gauges and im needing to buy a fuel cell with a fuel gauge, my question is what ohms should i looking for in a sendind unit to work with the autometer gauge
If you don't know what gauge you have, please reach out to our Support Team via phone or email and we'll go over some details to hopefully help identify which fuel gauge you have.
Date published: 2022-01-23
I have a '53 Merc with a fuel sender that measures : 7 ohms empty, 97 ohms full. Do I use a fuel gauge with 0-90 ohms? Can I put a 7 ohm resistor in series with the input to the gauge to correct for the sender resistance?
Bobbie,
Thank you for your question. Unfortunately you wouldn't be able to use a resistor to correct the resistance on the sending unit. Since you are only 7 ohms of resistance off it won't be spot on, but you will be in close enough range for the gauge to still notify you empty and full.
Date published: 2019-09-18
I want to use your gauges to replace the stock console gauges in a 1967 Camaro. Will you 2-1/16" gauges fit? Is this the hole size or the size across the face outside to outside?
Hi Larry, thank you for the question. Since we do not make direct OE replacement instruments we wouldn't know if this would fit your Camaro. The hole size for the 1214 is 2-1/16". The outer diameter of the trim or bezel is 2-3/16".
Date published: 2019-01-04
I bought the recommended gauge for my caprice 1989 (Product 1214), my factory sencor is damged and gives error. What sensor after market will be compatible for my guage and car?
Thank you for your question. Product #1214 is a 0-90 Ohm fuel level gauge, which is common among GM vehicles through 1997. While AutoMeter only makes a fuel level sender #3262 which is 240-33 Ohms, you can buy a 0-90 Ohm fuel level sender from the Equus website here: https://www.iequus.com/9982.html
This is going to be a fairly simple, universal, 0-90 sending unit. You may want to look elsewhere to find something that is more of a specific replacement to your OEM sending unit. Any 0-90 Ohm sending unit will work with your #1214 fuel level gauge.
Date published: 2018-09-13
Is this compatible with a 30 ohm sending unit in my 65 Nova?
Hi Deuce, thank you for connecting with us. Since 1965 is right at the transition period for Chevy Fuel Level senders, we'd recommend testing yours to be sure. Officially, we do recognize 1965 as the model year Chevy switched to the 0-90 ohms sender, but we would definitely recommend checking to be certain in this situation. It's possible you have a 0-30 ohm sender, in which case you would have to either replace your sender or use our 1209 Programmable Fuel Level, which features a 0-30 ohm setting.
Date published: 2018-03-15
