2-1/16" WIDEBAND AIR/FUEL RATIO, ANALOG, 8:1-18:1 AFR, ES

$254.99

Shipping in 2-4 business days

Free Shipping over $99

Hassle Free Returns

Quick Specs

Size:2-1/16" (52.4mm)
Type:Digital Stepper Motor
Range:8:1-18:1 AFR
Lighting:LED
Instructions: Download PDF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DESCRIPTION:

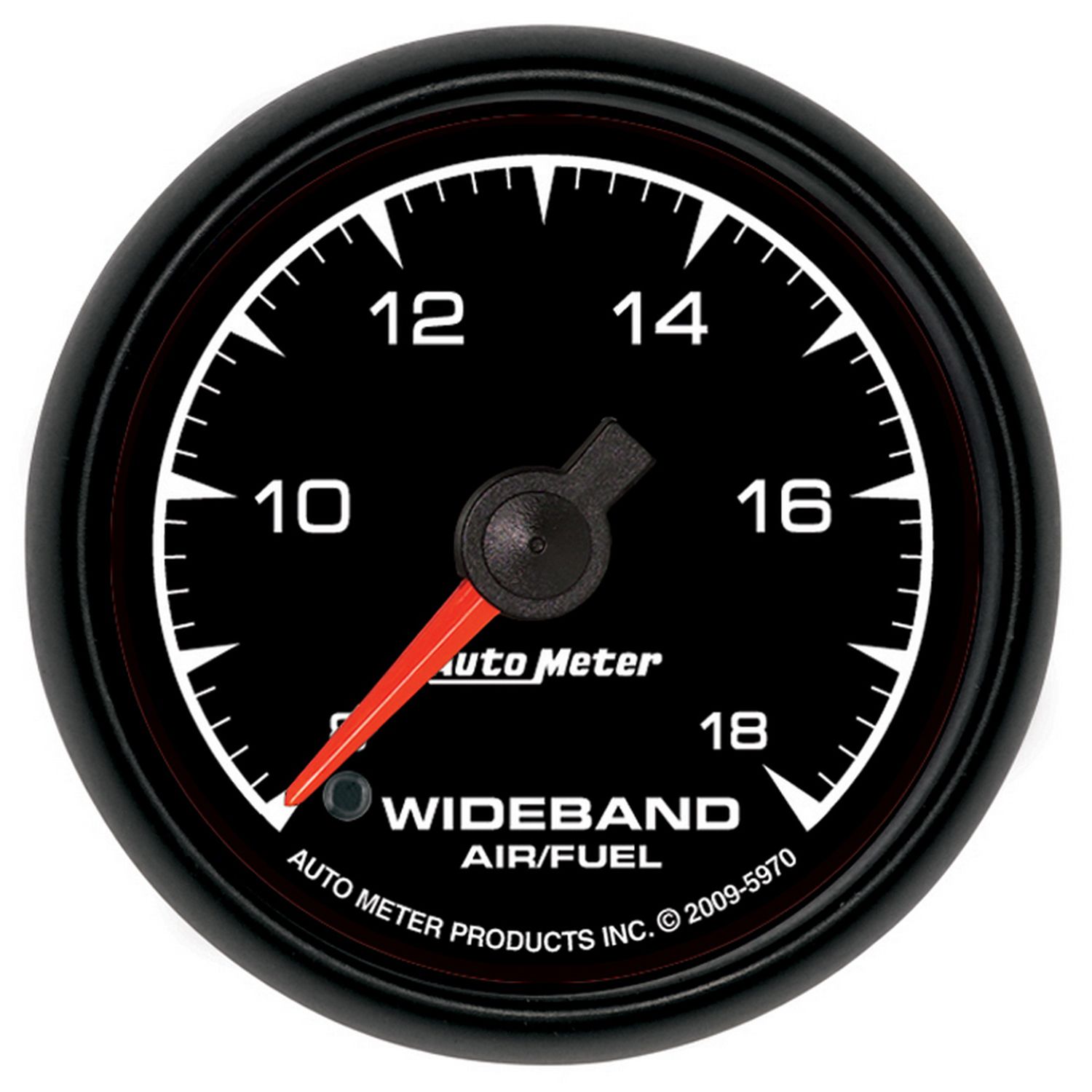

Mirroring the functions of AutoMeter’s Street Wideband, the Digital Stepper Motor Wideband provides the most important functions necessary to make sure you’re extracting the most power possible, safely. An analog needle display integrates seamlessly with other gauges and easily illustrates rate of change as well as the actual value. Our advanced auto calibration system automatically calibrates your gauge on every startup to assure you of the highest degree of accuracy over the entire lifespan of your sensor (no free air calibration is ever necessary). Designed for gasoline applications, this wideband gauge provides the same degree of accuracy and response as the Pro version, but at a reduced cost. Data logging output is included for one wire or two wire systems. Our specially designed O2 sensor and wiring harness are included for ease of installation.

Feature Points

Modern red LED through-the-dial lighting provides clear visibility during nighttime use
Gauge kit includes custom tuned .1 AFR Resolution Bosch LSU4.2 Sensor, 8ft. wiring harness, 304 stainless steel weld-in bung, mounting hardware, and detailed instructions for installation
AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
Display range of 8:1 to 18:1
Suitable for use with gasoline powered engines
12 and 16 volt compatible, compatible with nearly every street car or race car electrical system

Ships With

Includes Sending Unit: 2243
M18X1.5 Fitting and Plug
Wire Harness: 5298
2230

REVIEWS:

QUESTIONS:

will this gauge work with a bosch 4.9 sensor

Asked by: roberto 3

Thank you for your question. Unfortunately this gauge is not compatible with the 4.9 sensor. The gauges we offer with the 4.9 sensor are our "Pro Plus" gauges like part number 3397.

Answered by: Alex at AutoMeter

Date published: 2024-03-22

What if any is the replacement AFR sensor part number to purchase for the 5970 ES?

Asked by: RonVC

This would use the 2243.

Answered by: Thomas From AutoMeter

Date published: 2022-05-17

The pigtail on the supplied sensor is 10" long, but will I need a separate wiring run from the sensor pigtail to the meter? The instructional manual looks like there is another pigtail off the back of the gauge that goes to the sensor pigtail. Correct?

Asked by: Jim 777

Thank you for your question. The harness is all in one, so it will plug into the back of the gauge and there will be another female end to accept the sensor plug.

Answered by: Natalia from AutoMeter

Date published: 2021-03-12

Can this gauge be backlit with a traditional incandescent bulb and socket?

Asked by: Buck

Thank you for your question. No, it cannot. This gauge uses LEDs which are embedded on the circuit board. It is not designed to support a traditional bulb.

Answered by: Zach from AutoMeter

Date published: 2019-04-03

What are the dimensions, specifically the mounting depth with harness connected?

Asked by: Dennon

Thank you for your question. The harness will not extend passed the end of the mounting studs. The depth to the end of the mounting studs is 2-1/2".
