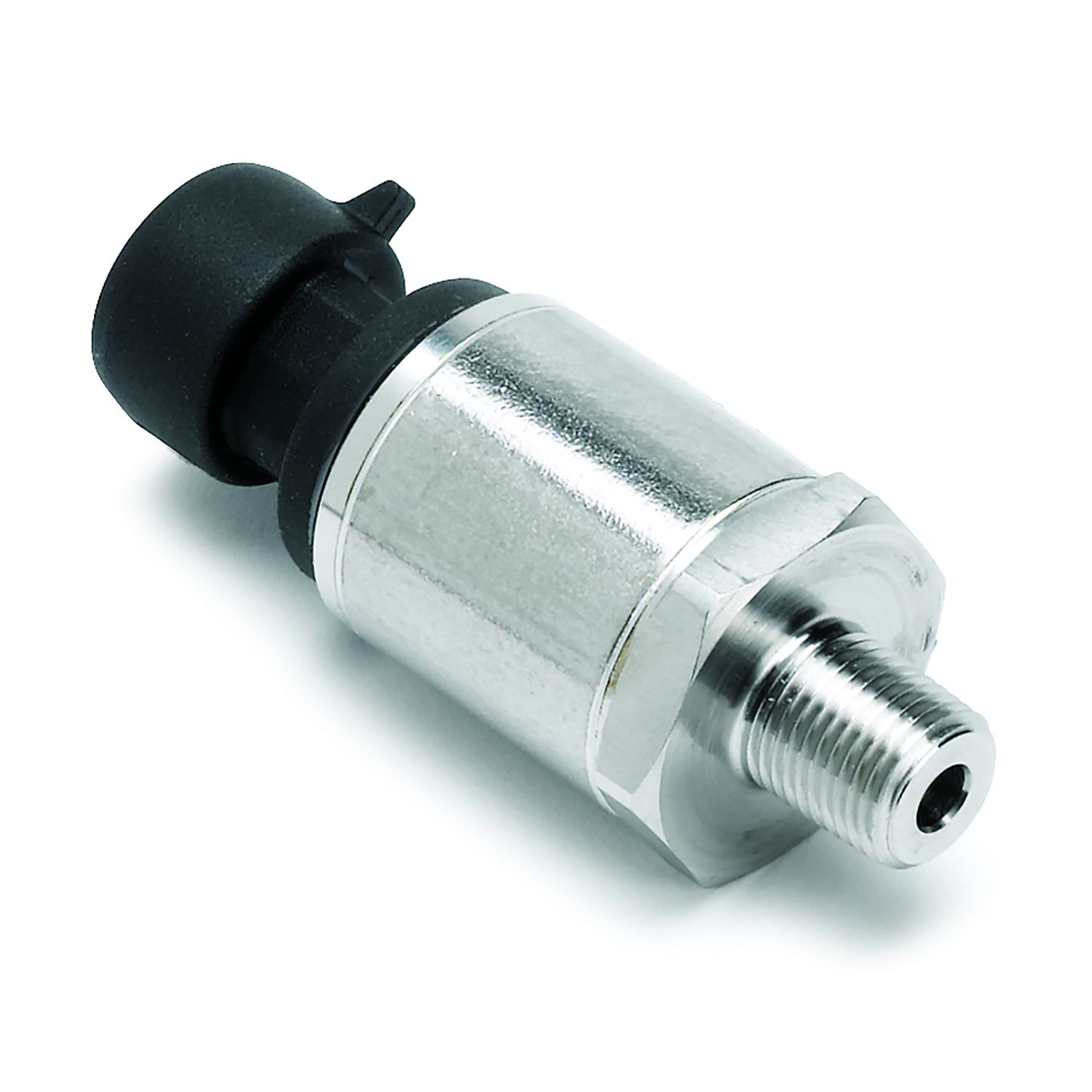

SENSOR, BRAKE & NITROUS PRESS, 0-1,600 PSI, 1/8" NPT MALE

$132.21

Shipping in 2-4 business days

Free Shipping over $99

Hassle Free Returns

Quick Specs

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DESCRIPTION:

SENSOR, BRAKE & NITROUS PRESS, 0-1,600 PSI, 1/8" NPT MALE

Feature Points

Built in connector mates to Delphi Packard Metri-Pack 150 series connector #12065287 (not included)

REVIEWS:

QUESTIONS:

I recently purchased Autometer brake pressure gauge Pro-comp ultra lite - I wish to buy another sensor and harness to suit the gauge - which part #s do I order? thanks

Asked by: Tony R

If you are referring to the 4467, then yes the 2240 would be the correct sensor and 5227 would be the harness.

Answered by: Thomas From AutoMeter

Date published: 2022-04-25

What is the accuracy and thermal error of the sensor? Also the output of the sensor is 0.5V-4.5V linear, but what is the input? Is it 12V or 5V?

Asked by: Smore

1% FULL SCALE (-40 F TO 221 F), 3% FULL SCALE (-40 F TO 257 F) and while the output is 0.5-4.5v, the input is 5V.

Answered by: Sarah from AutoMeter

Date published: 2021-12-06

What is the input Voltage of the Sensor? 12V or 5V DC?

Asked by: Selfdriving

Hello! 2240 is a .5V to 4.5V linear sender.

Answered by: Natalia from AutoMeter

Date published: 2020-11-30

Is this sensor adjustable? If not, do you have one that is?

Asked by: Chads55

Hi, This 2240 cannot be adjusted. Like all of our 5 volt sensors, it produces a standard linear .5 to 4.5 volt output. Thanks, Jim

Answered by: Jim from AutoMeter

Date published: 2020-04-10

Do you have the spec sheet and instalation instructions? How about a brake line adapter

Asked by: skillman11

Thank you so much for for the question. The sender is a .5V to 4.5V linear sender. Here is a direct link to the electric Brake Pressure gauge instruction; https://www.autometer.com/media/manual/2650-1134.pdf There are a few specialized parts we include with our Brake Pressure gauges that aren't sold as standard parts. If you need any of these parts, give us a ring at 866.248.6356, hit the Chat link at the top of the page or you can email us here for more information: http://www.autometer.com/resources/index/ask_a_question

Answered by: Matt from AutoMeter

Date published: 2018-01-24
